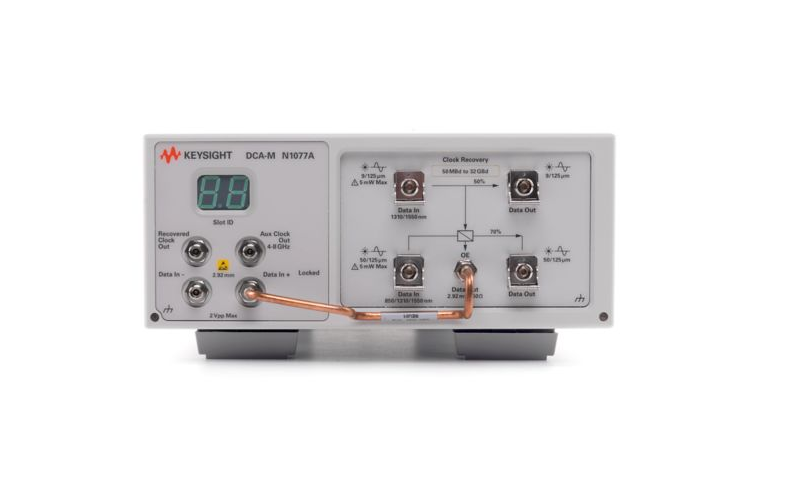

Keysight N1077A 光/電時鐘恢復

主要特性和功能

• 光和電設計上的 50 MBaud 至 32 GBaud 數據速率范圍（連續）

• 提高符合標準的 NRZ 和 PAM-4 數據信號時鐘恢復（CR）

• 利用集成的放大光電（O/E）轉換器構造靈活、緊湊和高靈敏度的時鐘恢復設計

• 利用集成的分路器和主體光耦合器（選件 SMS）獲得最佳的易用性

  Key Features and Functions

• 50 MBaud to 32 GBaud data rate range (continuous) on optical and electrical designs

• Provides standards-compliant clock recovery (CR) for NRZ and PAM-4 data signals

• Gain optimal ease-of-use with integrated splitter and bulk optics coupler (Option SMS)

• Gain insight into root cause(s) for jitter using Jitter Spectrum Analysis (Option JSA). Perform compliant PLL bandwidth and peaking measurements using 86100DU-400 PLL Analysis software

  ?
